BUTCube - Solar unit

BUTCube - Solar unit

Functioning sample

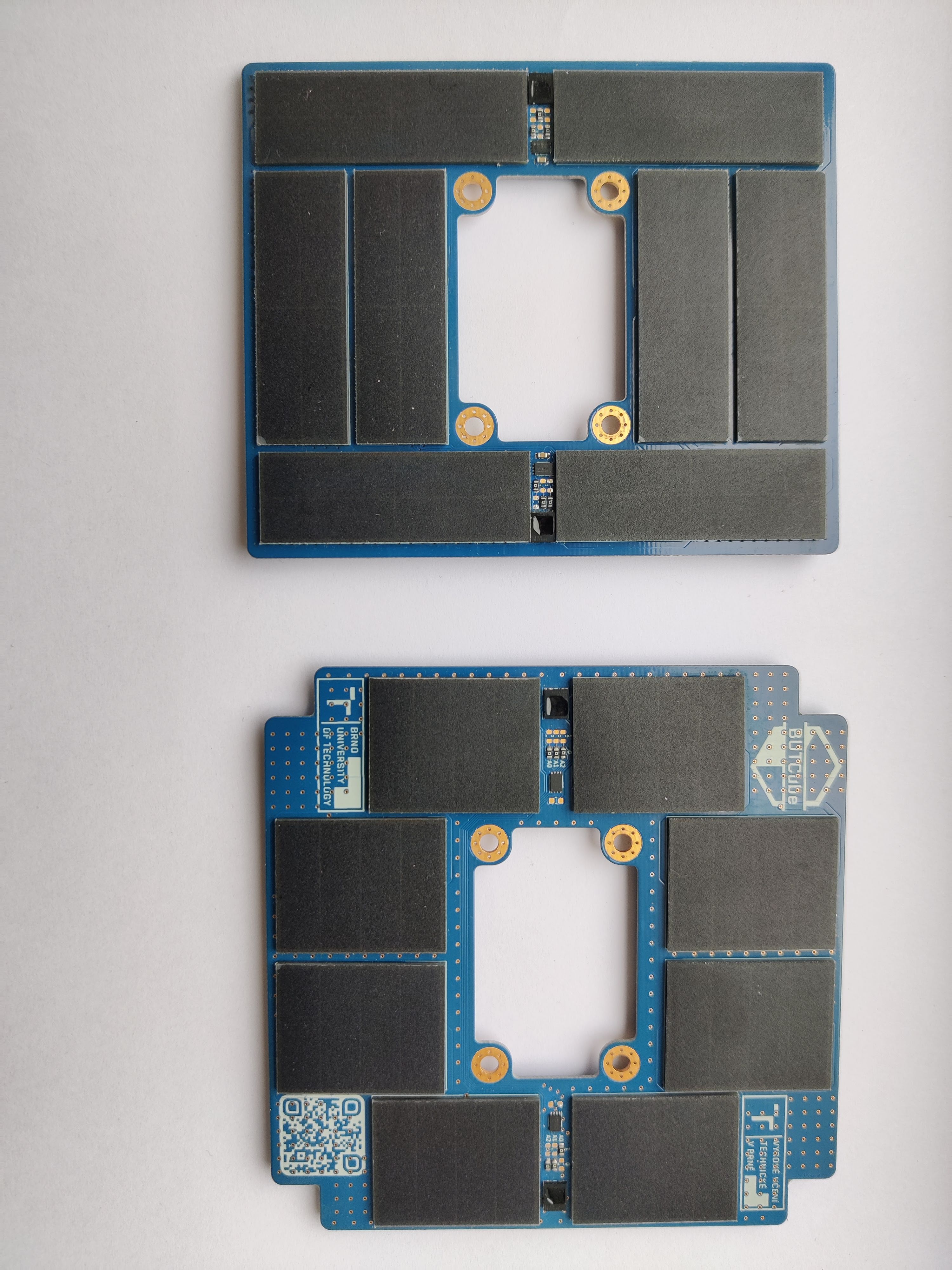

Solar unit for BUT Cube satellite. Serves as the main power supply for the satellite. The unit is available in two variants, the first one can be placed on the sides of the satellite (X+, X-, Y+, Y-), the second variant is for placing on the top/bottom face (Z+, Z-). Functionally and in parameters the units do not differ from each other, only the shape of the unit and the format of the solar cells mounted on it are different.

In addition to the solar cells themselves, the module also contains sensors that can be connected to the control unit to obtain data on the temperature of the panel or the light level of the satellite side.

The unit contains a space in the middle for the modules to be placed, which can further extend the functionality of the satellite. This module can be: a sun tracker, an access panel or an antenna module.

Solar unit for BUT Cube satellite. Serves as the main power supply for the satellite. The unit is available in two variants, the first one can be placed on the sides of the satellite (X+, X-, Y+, Y-), the second variant is for placing on the top/bottom face (Z+, Z-). Functionally and in parameters the units do not differ from each other, only the shape of the unit and the format of the solar cells mounted on it are different.

In addition to the solar cells themselves, the module also contains sensors that can be connected to the control unit to obtain data on the temperature of the panel or the light level of the satellite side.

The unit contains a space in the middle for the modules to be placed, which can further extend the functionality of the satellite. This module can be: a sun tracker, an access panel or an antenna module.

cube-sat, mission demonstrator,satellite, 1U concept, solar unit, sun detection

cube-sat, mission demonstrator,satellite, 1U concept, solar unit, sun detection

Produkt je fyzicky umístěn na Leteckém ústavu FSI VUT v Brně. Výrobní podklady a zdrojové kódy jsou dostupné na odkaze níže.

In order to use the result by another entity, it is always necessary to acquire a license

https://www.fit.vut.cz/research/product/757/
